API Integration (Integration Level 6)

---

At a Glance

• The host controls the full UI.
• Air Doctor provides a structured REST API.
• All screens load through PUT endpoints.
• All updates apply through PATCH.
• All actions commit through POST`.
• All files download through GET.

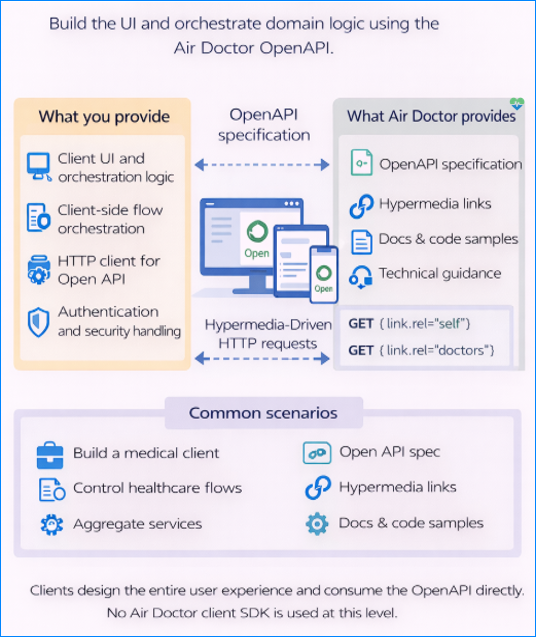

At Level 6 the host application takes full ownership of the user experience by consuming the Air Doctor REST API directly. Instead of an embedded UI or SDK reuse, the host application calls the same endpoints that Air Doctor clients use, and the host technology stack renders the interface, coordinates flows, and applies its own design system.

This model offers maximum flexibility and suits teams that want to integrate Air Doctor medical assistance workflows inside a custom product with its own UI, logic, and branding.

API Discovery

The API includes complete documentation through the OpenAPI specification available at /openapi.html on each environment:

• dev.air-dr.com
• test.air-dr.com
• staging.air-dr.com
• prod.air-dr.com

The specification lists content by screens and functional areas. Each operation lists the accepted parameters and a standard response format that applies across all calls.

HTTP Methods and Semantics

Air Doctor’s REST API uses a server‑driven UI model. The semantics of each of the HTTP methods align with the HATEOAS structure of the system.

Key methods

Method	Task	Description
PUT	Load a screen from the server	You request a specific screen (for example, appointments-list) and the server returns a JSON object with the screen definition, layout instructions, and a list of actions (such as buttons, links, etc.) that the user can perform.
PATCH	Request incremental updates	After the initial screen loads,PATCHrequests return only the changes required to update the current view. These are triggered by user events (for example, selection of a specialty) or by server‑side changes (as in, appointment availability).
POST	Commit an action	UsePOSTto save user input or trigger operations (such as, book an appointment or upload a document).POSTcalls return no body; the response includes headers and the HTTP status. In most cases the server returns HTTP 204 (No Content), with a Location or Next-Screen header that indicates the next navigate target.
GET	Retrieve a binary resource	Files such as images, PDFs, fonts, or other assets download through GET  and return in their native format. The caller is responsible for caching and storage.

Input Parameter Handling

All endpoints accept parameters through:

• Query strings
• Form fields
• Multipart/form-data

Parameter location is interchangeable because the routing layer collects inputs before processing.
Parameter names follow a structural naming scheme rather than a globally unique model. For example, fields that belong to one logical object use a common prefix.

This model passes structured data without JSON request bodies or DTOs and relies on a simple HTTP encoding format.

Authentication and Tokens

Most API operations require a user access token.
The OpenAPI specification identifies whether an endpoint accepts a:

• Patient token
• Doctor token
• Any token
• No token

Even when a token is optional,the use of a token is recommended because a token enables personalization and authorization.
Any token-injection mechanism applies.

Token-Injection Mechanism

Whichever mechanism you choose, ensure that the token stays confidential and stays current according to its expiry time.

Real-Time Updates

To keep clients current without constant polling, Air Doctor provides two mechanisms for real-time synchronization: server-sent events (SSE) and partner-controlled push notifications.

Server-Sent Events (SSE)

Air Doctor exposes one user-level SSE stream per token.
A subscription delivers:

• Screen updates
• Messages
• Appointment changes
• Other state updates

note

Air Doctor exposes one stream per user token, not one per resource.

Push Notifications (Mobile)

For native mobile integrations, Air Doctor uses push notifications. When an event occurs, the Air Doctor backend calls the partner’s backend (server) with a request to forward a push notification. The partner backend is responsible tp delivery the PUSH to their app, which in turn should update the relevant screens. This indirection ensures that partners retain control over their notification channels while the Air Doctor experience stays in sync.

important

If the partner backend drops or delays notifications, the mobile app may not reflect the latest state. Reliable callback processing from Air Doctor is required.

Next Steps and Sub‑Articles

Level 6 requires a deeper understanding of our API model than the previous integration levels. The following sections provide detail guidance for implementing a custom client:

Topic	Description
Access Token Handling	Describes different token injection strategies, the distinction between patient and doctor tokens, and key security considerations.
Input Parameters	Outlines the parameter naming scheme, locations (query, form, multipart), and encoding rules. Learn how to construct requests without using JSON bodies.
PUT- Screen loading	Describes how to call screen endpoints, interpret the returned layout and actions, and initialize your interface.
PATCH- Screen updates	Explains the incremental update mechanism, event triggers, and the process for merging updates into your UI.
POST - Commit actions	Details how to submit user actions, handle server responses, and direct the user to the next screen.
GET - File retrieval	Covers downloading and caching for binary assets such as images, documents, and fonts.
Error Handling	Covers the error messages the server can return.
Real-Time Updates	Describes server‑sent events and push notifications, including registration flows and best practices for maintaining state across devices.
