Filter

---

Use the Appointment Filter screen to narrow the appointment list based on patient or session criteria. The filter panel appears as an overlay from the Appointments screen.

This screen includes:

• Text fields for:
  • Reference number
  • Doctor or clinic name
  • Patient name
  • Date of birth
• A multiselect dropdown for appointment status
• Start date and End date pickers
• Apply and Reset buttons
• A quick filter bar for common statuses
• A pop-up panel for advanced sort options
• Conditional logic and field validation
• Filtering triggers success or error messages
• Selecting Close closes the panel

---

Workflow

Use this screen to isolate relevant appointments.

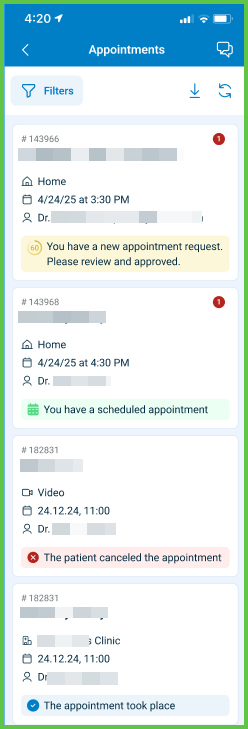

1. Select the Filter icon in the Appointments toolbar.
2. Enter one or more filter criteria:
   • Reference number (digits only)
   • Start date and End date
   • Doctor or clinic name
   • Patient name
   • Date of birth (YYYY-MM-DD)
   • Status: New requests, Offered appointments, Scheduled, After visit, Cancelled / Refused
3. Select Apply to filter the list.
4. Review the updated results.

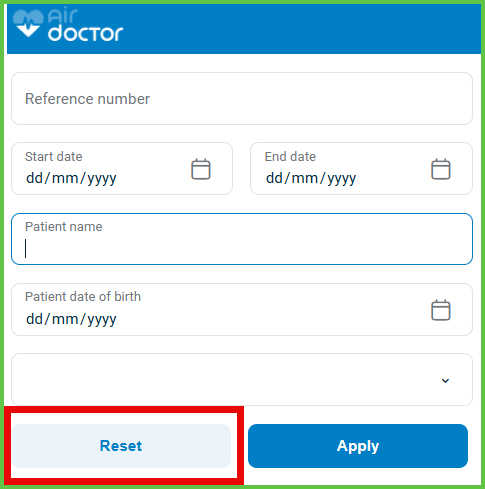

5. Select Reset to remove all values and restore the full list.

---

Validations

• Disables Apply when no filters are set.

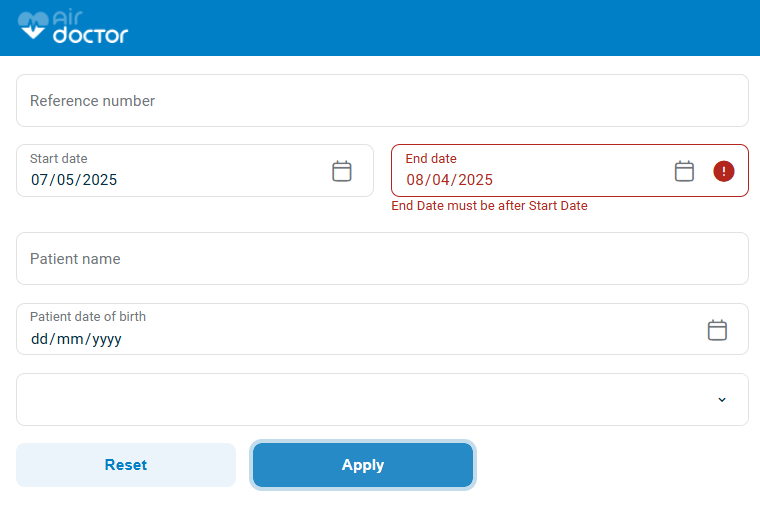

• Rejects End date earlier than Start date.

• Allows only defined statuses in the multiselect.
• Accepts only past dates for Date of Birth.

• Requires digits-only in the reference number field.
• Matches patient names by exact or partial string.
• Adjusts profile field based on aggregator context.
• Rejects future dates in the Date of Birth field.

Actions

• Apply filters the list in real time.
• Reset clears all filter values.

• Close dismisses the panel.
• Combines multiple filters (e.g., date, status, reference).
• Provides sort options for:
  • Recommended
  • Appointment date

---

SDK and API References

SDK Reference

GET

/profile/appointments/filter

Filters appointments by patient or session attributes. UI behavior and field layout differ across platforms.

Platform Variants

Variant	Behavior	Example
Mobile	Opens as a full-screen overlay with vertically stacked fields. Tapping outside closes the panel.	(see below)
Desktop	Displays as a left-side panel with compact spacing. Filtering updates the list in real time.	(see below)

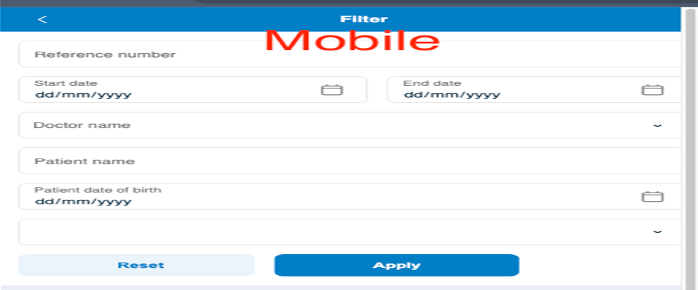

Mobile:

Desktop:

UI Element Types

Level	Reference	Type	Value	Placement
1	reference	Edit	Reference no.
1	start-date	Date	Start date
1	end-date	Date	End date
1	profile-id	Combo	Profile name
1	patient-name	Edit	Patient name
1	patient-birthday	Date	Date of birth
1	status-group	Multiselect	Status (values: New requests, Offered appointments, Scheduled appointments, After visit, Cancelled / Refused)
1	reset	Secondary	Reset
1	apply	Button	Apply Filter	~

---

PATCH

/profile/appointments/filter/reset

Clear all fields in the appointment filter when the user clicks Reset. Update the appointments list immediately without reloading the page.

API Reference

POST

/profile/appointments/filter

Filter the appointment list by attributes such as reference number, status group, doctor profile, or date range. Submit this request to retrieve a filtered appointment list in the current session. This request does not require pagination.

Parameters

Name	Type	Required	Description
reference	String	No	Unique appointment reference number.
start-date	Date	No	Start of the search range. Uses the doctor's time zone.
end-date	Date	No	End of the search range. Uses the doctor's time zone.
profile	Integer	No	Unique identifier for the doctor's profile.
patient-name	String	No	Patient name.
patient-date-of-birth	Date	No	Patient's date of birth.
status-group	List<Enum>	No	Appointment status group. Valid values: new-requests, offered-appointments, scheduled-appointments, after_visit, cancelled
location-type	List<Enum>	No	Visit type. Valid values: home, clinic, video

Errors

Code	Description
FIELDS_VALIDATION_ERROR	One or more required fields are invalid.
